Részletek

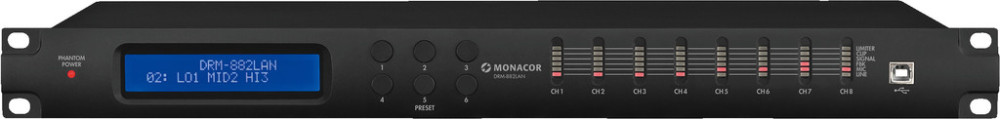

Digital 8x8 matrix router

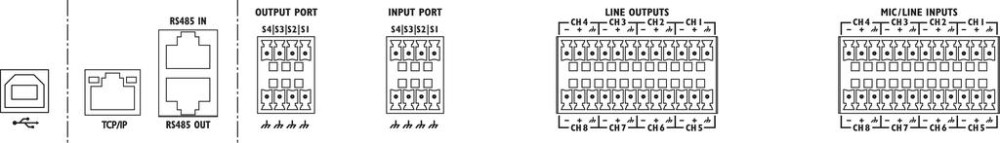

• 8 inputs and 8 outputs (plug-in screw terminals, switchable mic/line, balanced)
• +48 V phantom power
• User-defined routing of the inputs to the outputs
• The level of each routed input can be adjusted per assigned output (individual output mix)
• Up to 32 devices can be managed via software
• A/D converter: 4 x 24 bits, D/A converter: 1 x 24 bits
• Extensive signal processing and monitoring, e.g. frequency shift feedback eliminator, parametric 5-band equalizer with peak and shelving filters, variable low-pass/high-pass filters - optionally with Bessel, Butterworth or Linkwitz-Riley characteristics, RMS compressor, peak limiter, selectable phase, delay
• Integrated auto mixer
• 6-fold LED status cluster for each channel
• 6 user presets can be accessed directly
• Link feature for simultaneously changing the settings of several channels
• Stereo mode for the channels 1/2, 3/4, 5/6 and 7/8
• Dot matrix display with 2 x 24 characters
• Remote control via USB, RS-485 or TCP/IP LAN
• Real-time remote control via software
• Lock mode for front panel control
• Individual room control via optional wall-mounted remote control panel DRM-882WP or DRM-882WPX
• Robust steel housing with aluminium front panel
• 482 mm (19") rack installation, 1 RU

Input (data for each channel):

• Gain control with 0 dB bypass function
• Noise gate
• Mic/line switching
• Selectable priority circuit
• Parametric 3-band equalizer (peak, low-pass shelving, high-pass shelving)
• Frequency shift feedback eliminator
• Selectable phase (180°)

Output (data per channel):

• Low-pass filter/high-pass filter with Butterworth, Linkwitz-Riley and Bessel characteristics (to -24 dB/oct.). Even higher slopes possible in combination with equalizer
• Parametric 5-band equalizer with peak or low-pass/high-pass shelving filters
• Peak limiter and RMS compressor with a ratio of up to 32:1 and continuously adjustable soft/hard knee characteristics. Threshold: 18 dBu to -12 dBu, release time: 0.1-3 s, attack time: 5-200 ms
• Peak limiter and RMS compressor with bypass function
• Switchable delay between time (ms) and distance (m): 380.998 ms max. in steps of 21 µsec or 129.539 m max. in steps of 6.8 mm
• Selectable phase (180°)
• Gain control

Adatok

Input signal:

6.2 V max.

THD:

< 0,005 %

Outputs:

line: 8 x plug-in screw terminal, bal.

Jel/zaj-viszony:

> 104 dB

Other features:

USB, RS-485, TCP/IP

Átviteli tartomány:

20-20.000 Hz

Output signal:

6.2 V max.

DSP:

1

Súly:

3,4 kg

Inputs:

8 x plug-in screw terminal, bal.

Működési hőm. tart.:

0-40 °C

Nettó súly:

3,47 kg

Description:

matrix router

Okos-otthon-Kész:

1

Power supply:

˜ 230 V/50 Hz/20 VA

Dimensions:

482 x 44 x 250 mm, 1 RU

Crossover frequency:

70 Hz-1 kHz, 12 dB/oct.,

910 Hz-8 kHz, 12 dB/oct.,

subwoofer: 80/120 Hz, 24 dB/oct.

EAN code:

4,007,754,272,468
